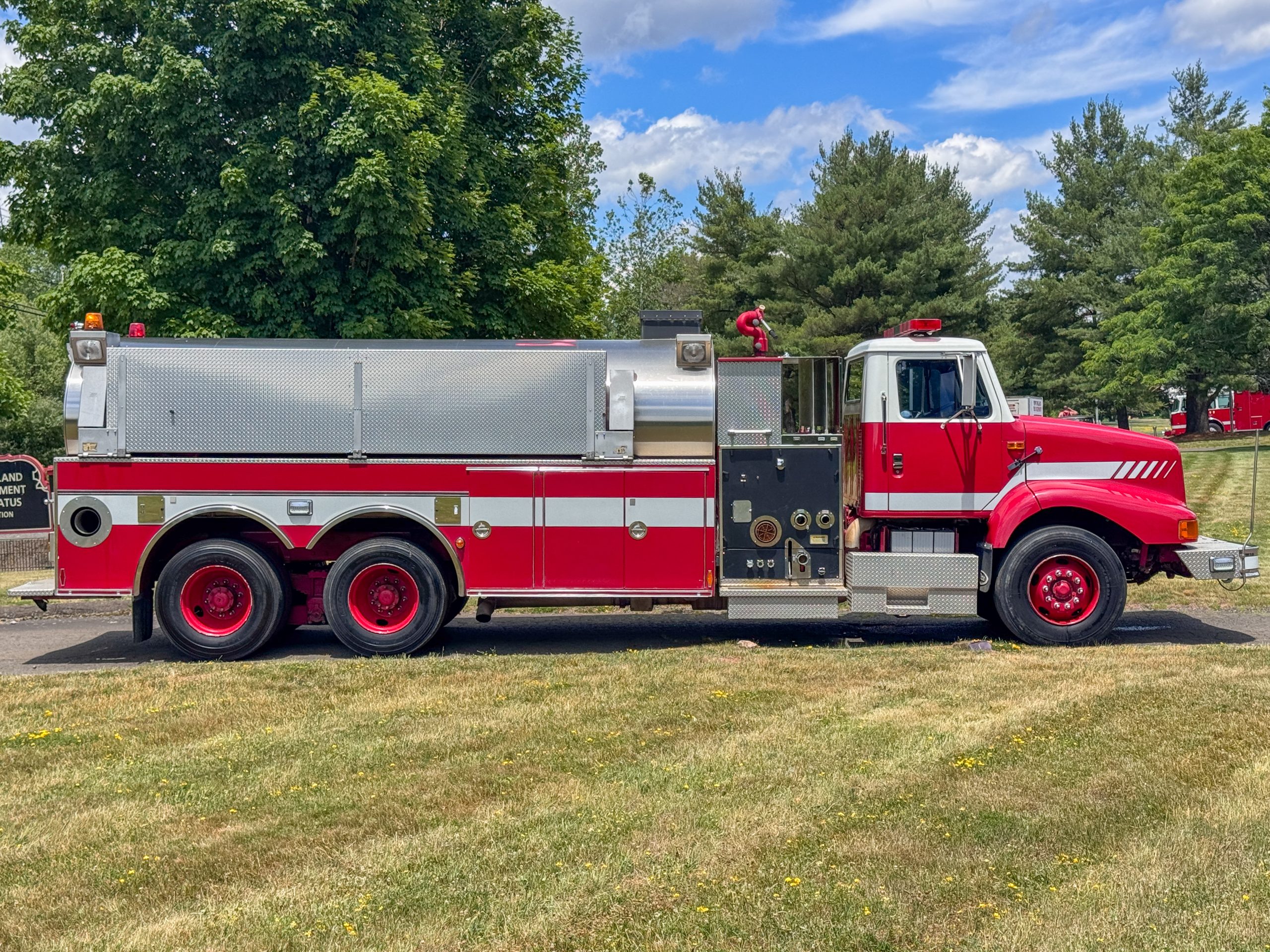

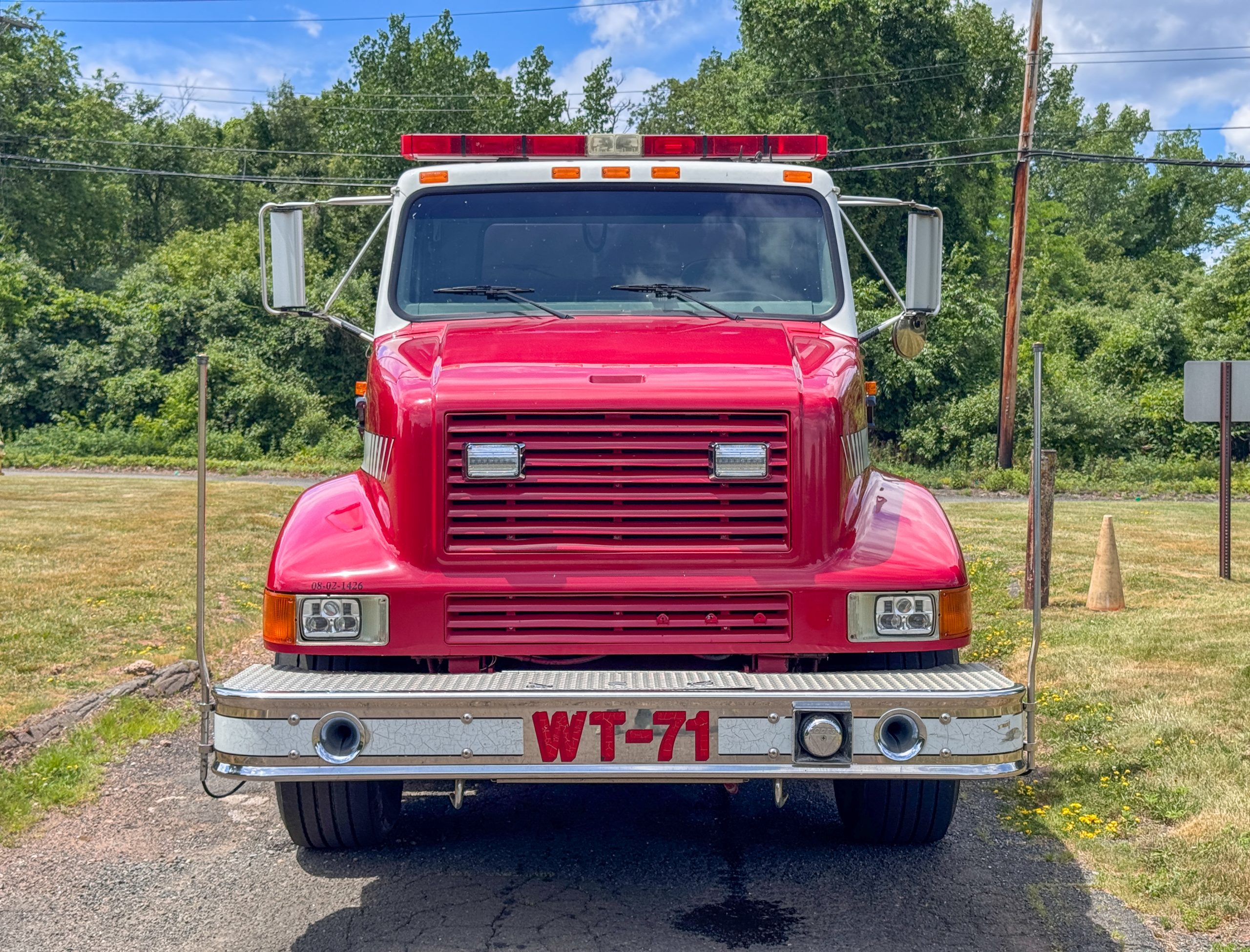

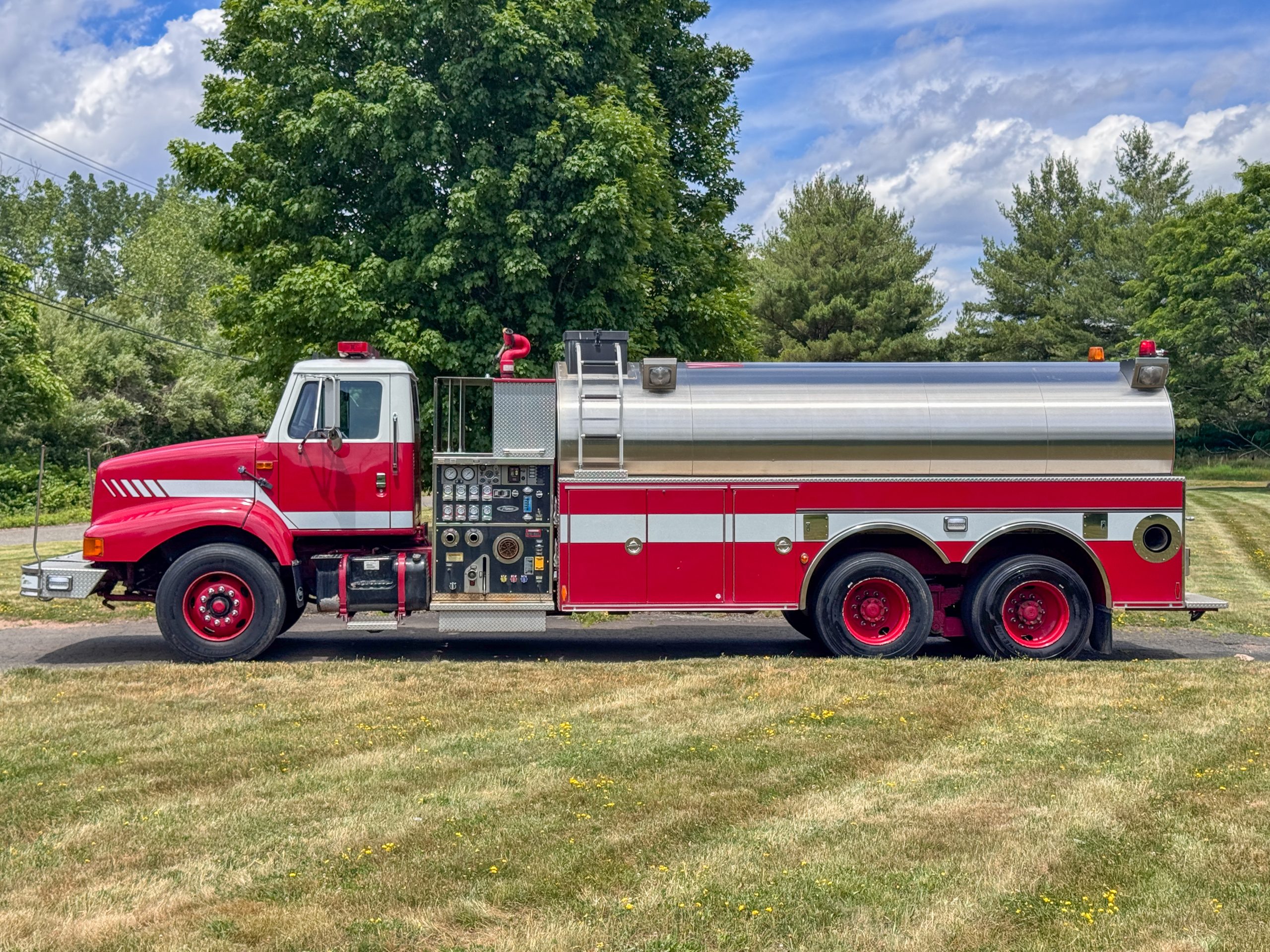

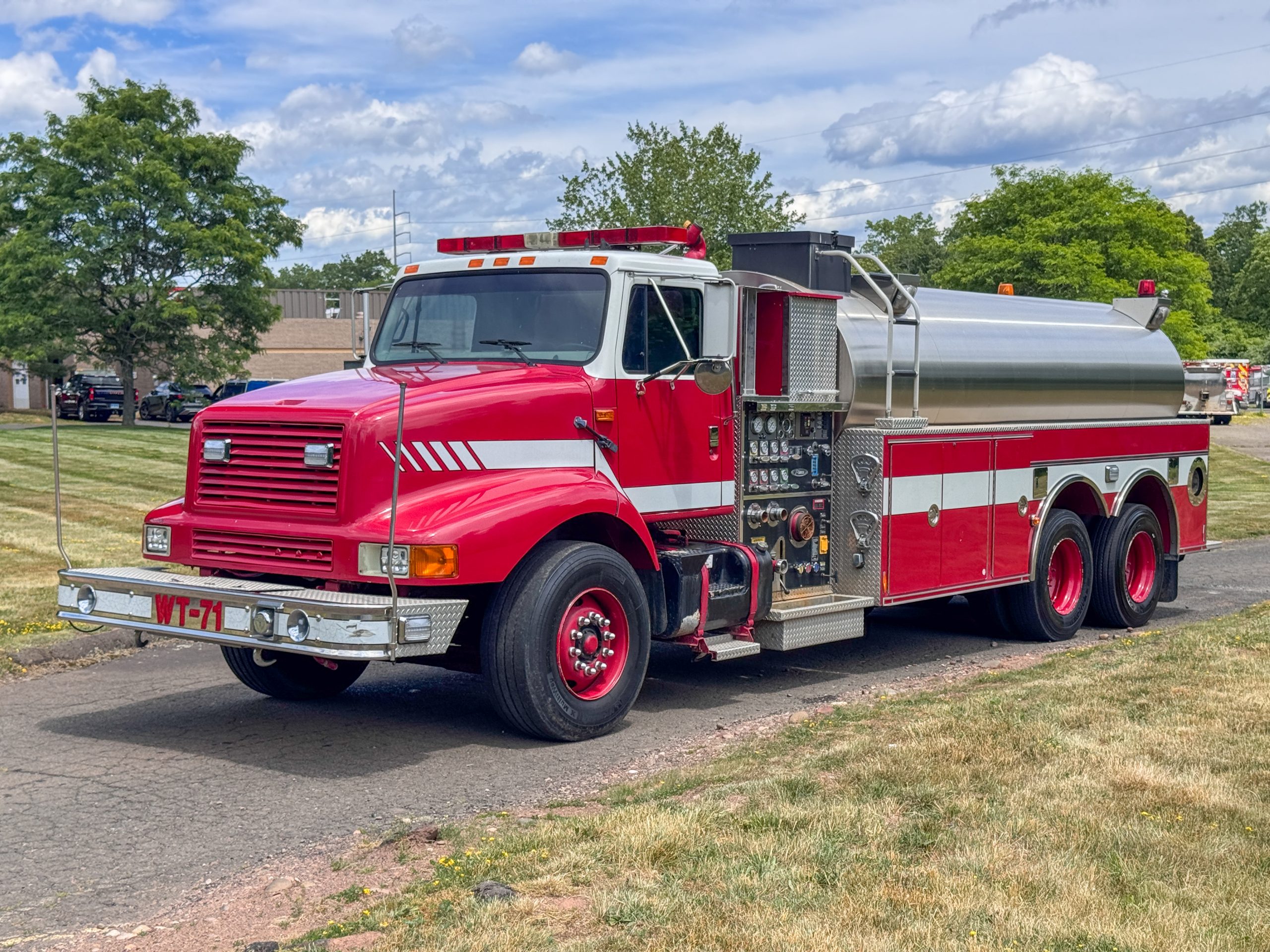

2002 IHC 3000 GALLON TANKER

Description

ALUMINUM BODY
4 CABINETS
INTERNATIONAL CHASSIS
MODEL 2674
MILEAGE: 95,535
HEIGHT: 10’ 7”
WIDTH: 8’ 6”
LENGTH: 34’ 4”
GVW: 64,000
WHEELBASE: 250”
ALUMINUM CAB
WHITE/RED
2 OCCUPANTS
2 SEATS
AIR BRAKES
AIR CONDITIONER
TIRE CONDITION: GOOD
FRONT TIRE SIZE: 385/65R22.5
REAR TIRE SIZE: 11R22.5
CUMMINS ISM 400
DIESEL TURBO
400 HP
6 CYLINDERS
ENGINE BRAKE
ENG HRS: 6,818
ALLISON AUTOMATIC TRANSMISSION
HD 4060
5 SPEEDS
WATEROUS CS PUMP
GPM: 1250
1 STAGE MIDSHIP
WATER TANK SIZE: 3000
POLY WATER TANK WITH STAINLESS STEEL WRAP
DECK GUN: ELKHART VULCAN NO TIP
DISCHARGES: TWO (2), 2 ½” DSPP
ONE (1), 2 ½”; ONE (1), 3” OSPP
PRE-CONNECTS: ONE (1), 1 ½” FRONT TRASH LINE
TWO (2), 1 ½” CROSSLAYS
INTAKE SUCTIONS: ONE (1), 6”; ONE (1), 2 ½” DSPP
ONE (1), 6”; ONE (1), 2 ½” OSPP
DUMPS: ONE (1), 10” REAR MANUAL
ONE (1), DS 8”; ONE (1), PS 8” MANUAL
ONE (1), 3” DIRECT TANK FILL REAR
LIGHTBAR: WHELEN
WARNING LIGHTS: WHELEN 600
SIREN: CODE 3 V-CON
SCENE LIGHTS: FIXED TWO (2), REAR
FIXED DS FRONT & REAR OF TANK
FIXED OS FRONT & REAR OF TANK
ZICO ELEC. PORTA TANK BRACKET W/ 3000 GALLON TANK
DEADLAY AREA NEXT TO CROSSLAYS
WARD NO SMOKE DIVERTER
